tilting system for reverse trike use

Item Number : RV-001
After convert used with our tilting system as below picture :

The rear wheel : 20" and front wheels : 16 "
system fit for many bike but for balance between front and rear wheels
we suggest the front wheels need 4 " smaller than rear wheel .
Check the link to see how it work :https://www.youtube.com/watch?v=qarQC1w1S8s 　　　　　　　　　　　　　　　　　　　　
　　　　　　　　　　　　　　　　　　　　　　　　　
Component for :
Diy reverse tricycle use

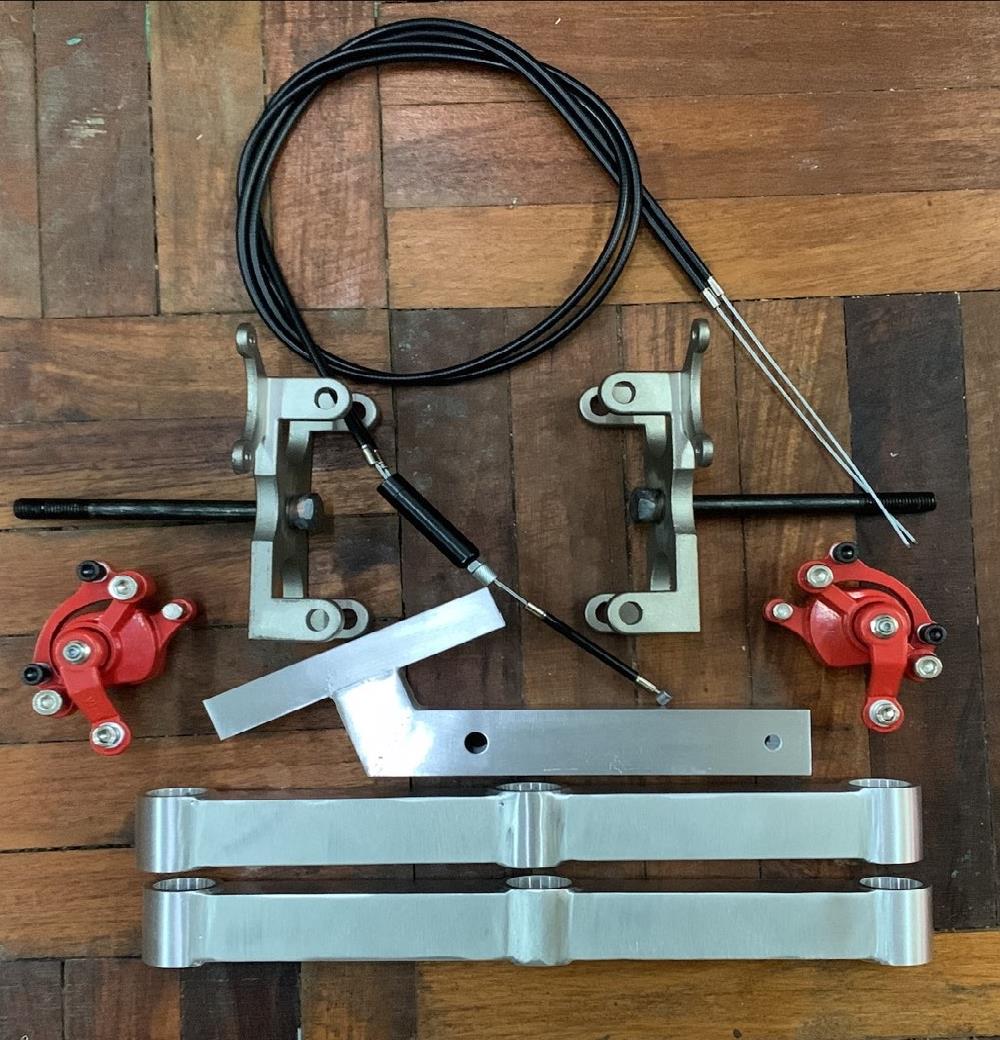

item included as show in the first ( 1 ) picture  :

1)

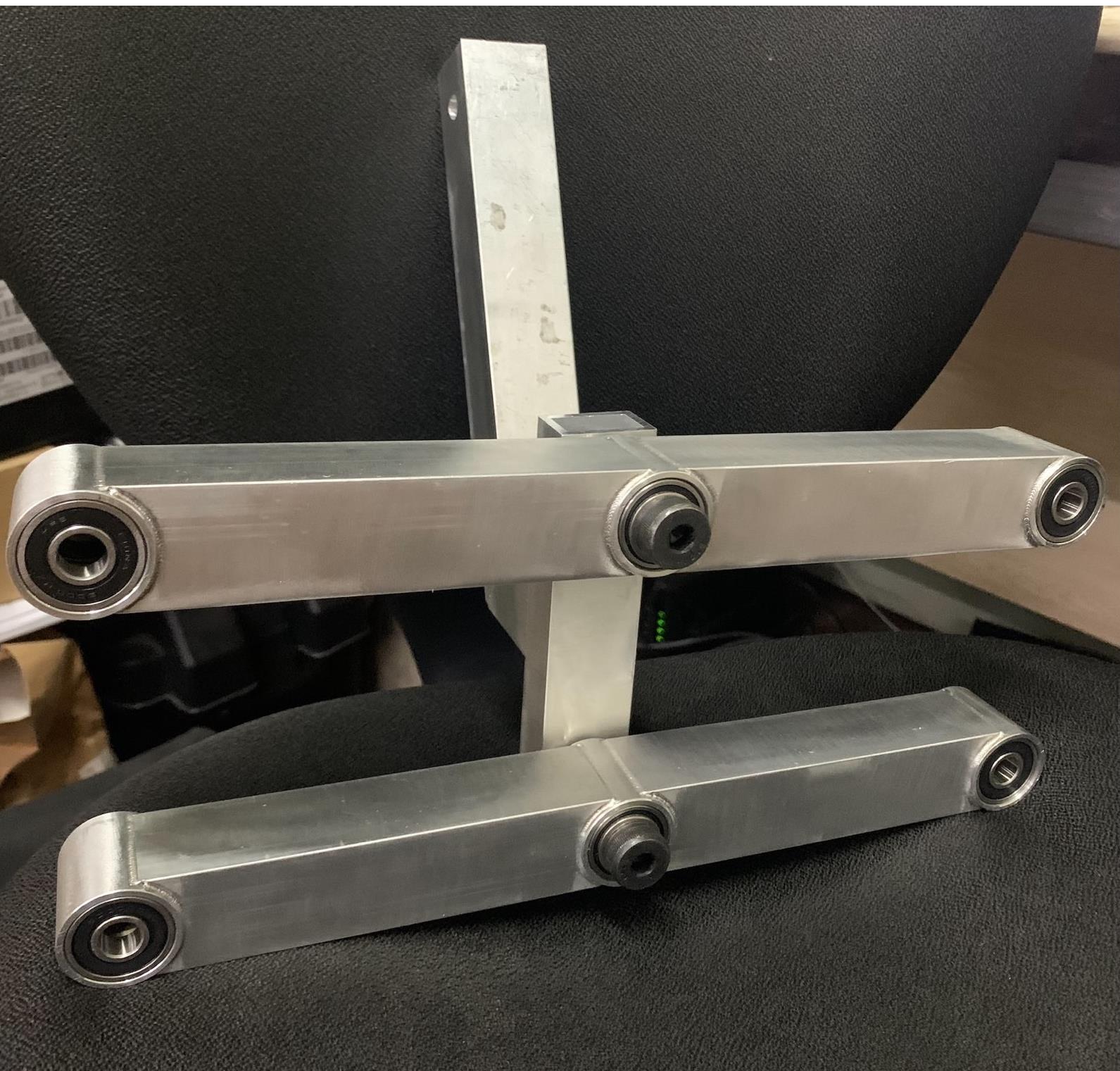

The new one is strong better / good out look / light more better for some one who would like to reselling this item .
2)New version available from2023

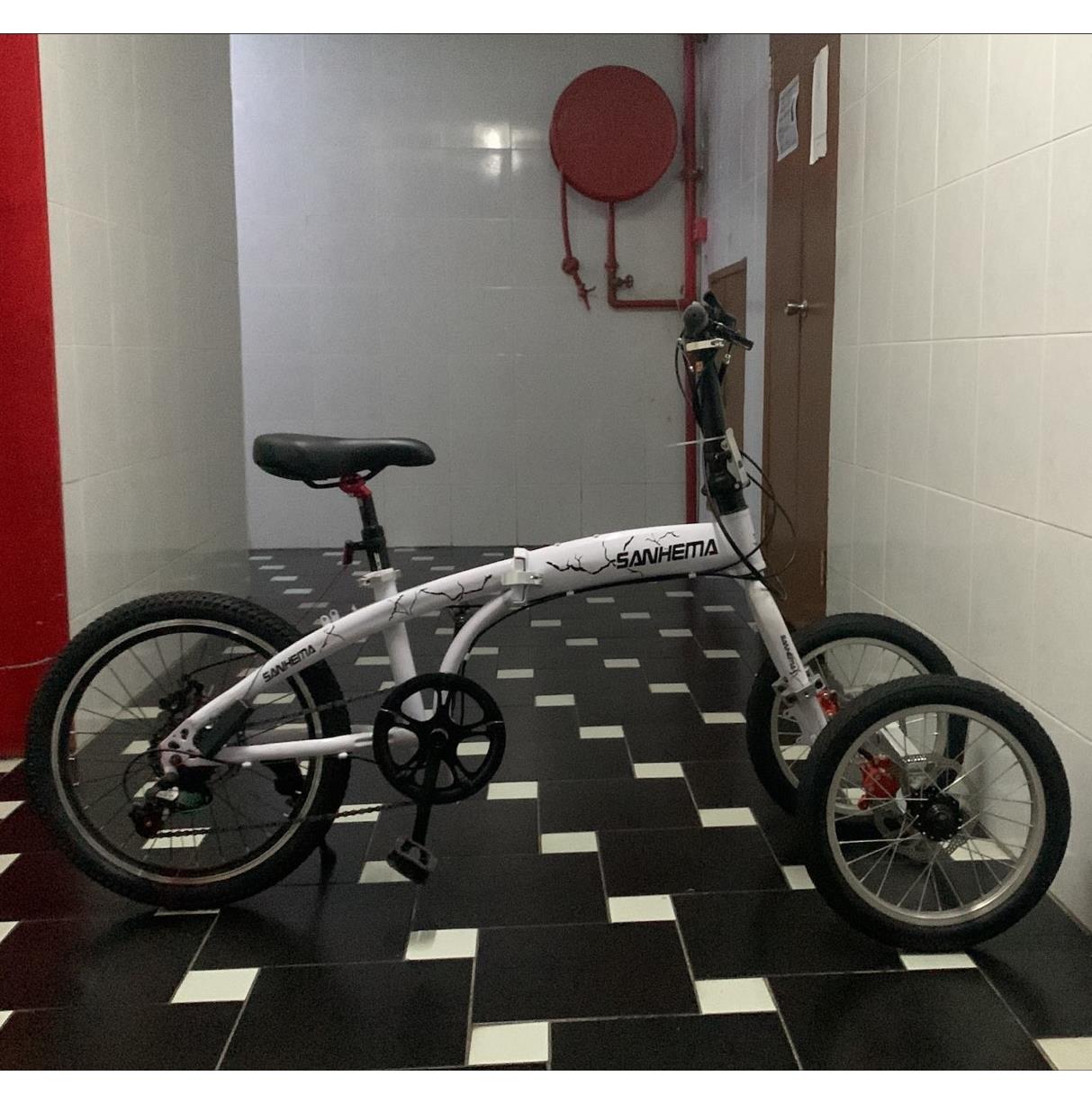

 A NORMAL BIKE AFTER INSTALL THE TILTING SYSTEM .

 New version available from jan 2023

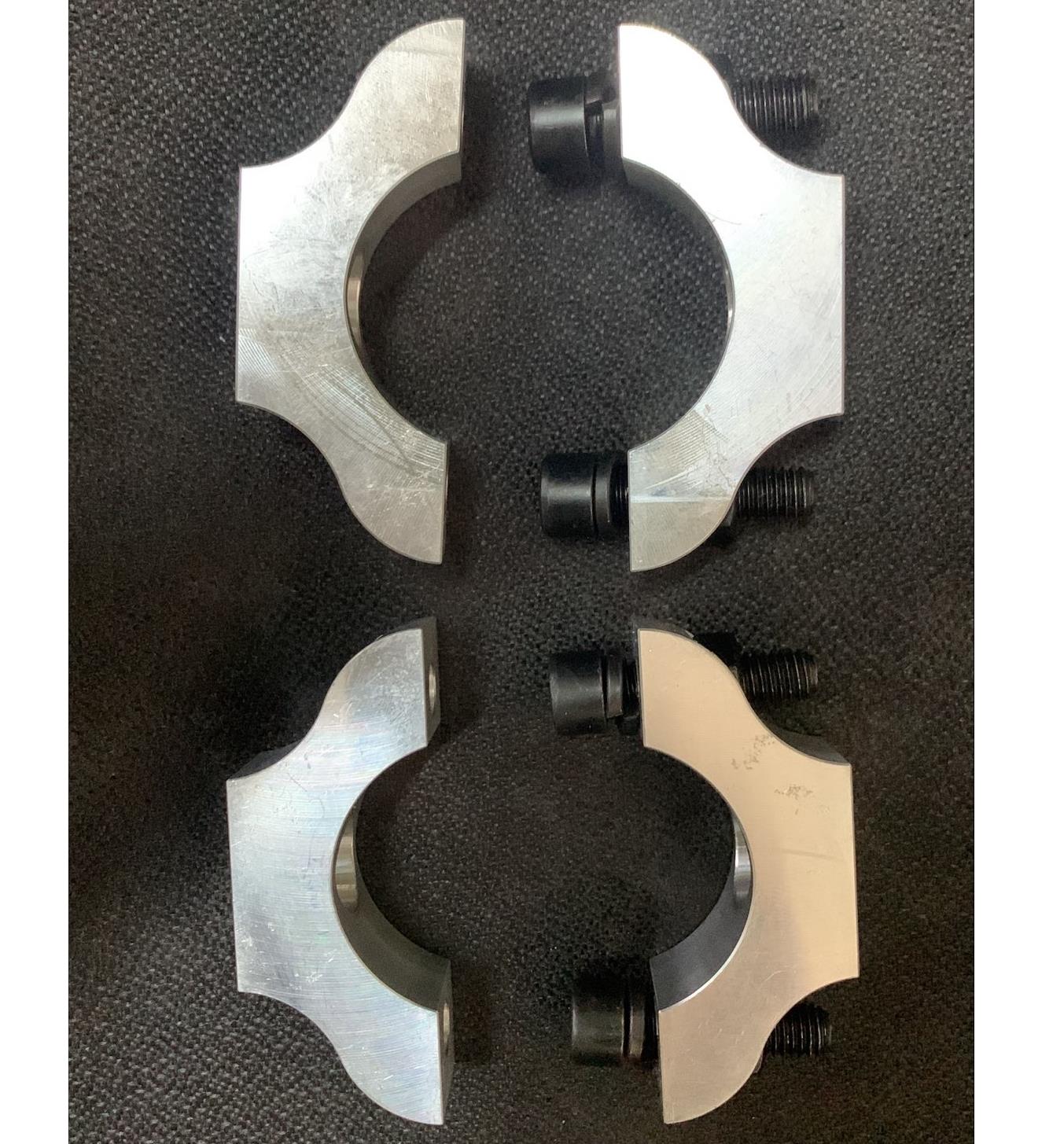

fit for the forks as following picture show
( please contact us if out of the standard fork size )

reference photos only , item excluded bike and wheels .
and due to heavy product it is , so we delivery the order by post surface service only.
please let me know if you want fast shipping ( but extra cost charge need )

------------------------------------------------------------
product fit for the bicycle is front forks in diameter 25MM ~ 30MM
100mm of the gap between both forks
fit for the bike with diameter 16 " 20" of wheels
---------------------------------------------------------------------
Shipping
We send order with SF express service,
please contact us if any need .

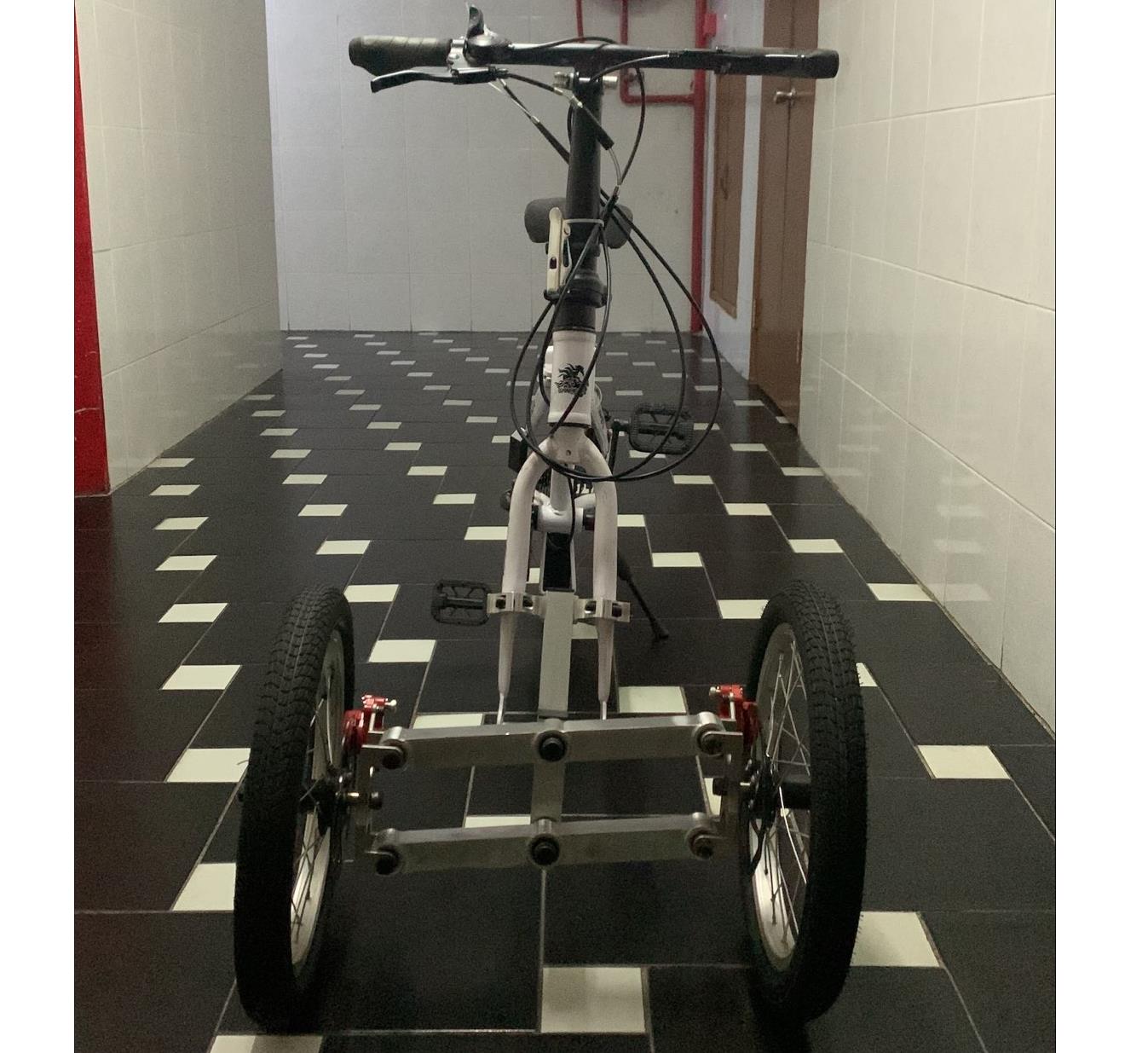

photo of after converted as follow
